Model
JSC-CT3W/B

Item specifics

Cooling Method:
Integrated Air-cooled Combustion Chamber
Burner Type:
Exclusive V-shape High-efficiency Burner
Temperature Control:
AI-powered Precise Temperature Regulation
Fan System:
Dual-speed Variable-frequency Fan
Safety Features:
Multi-layer Protection System
Energy Efficiency:
High Thermal Efficiency Design

Review

Description

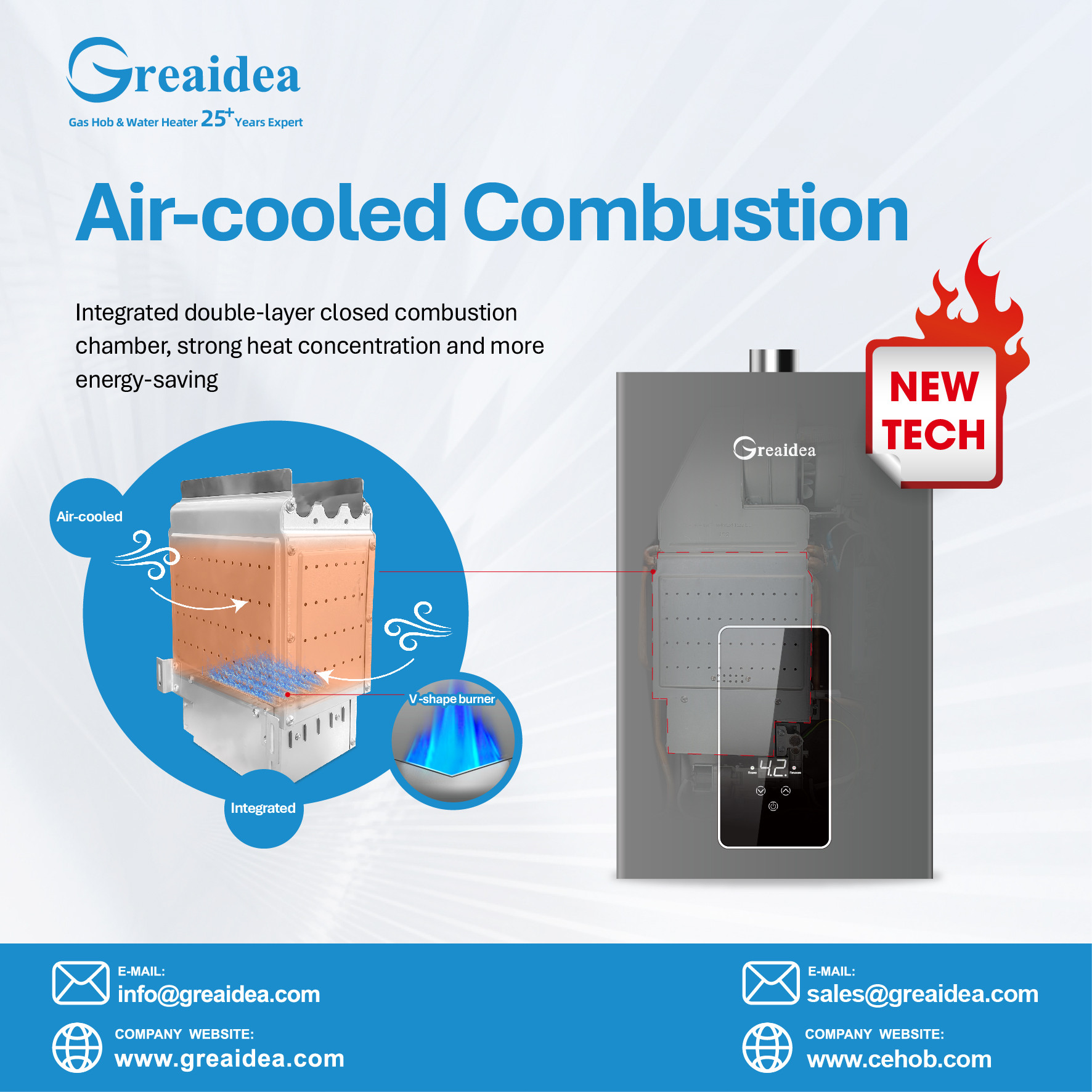

Unlike traditional water-cooled combustion systems, Greaidea's air-cooled integrated double-layer combustion chamber uses airflow—not water—to manage heat. This design drastically improves heat concentration, enables higher energy conversion efficiency, and simplifies maintenance, making it ideal for modern households users seeking eco-friendly and low-maintenance hot water solutions.

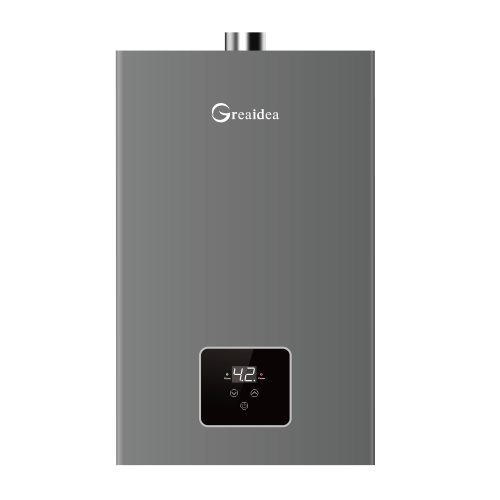

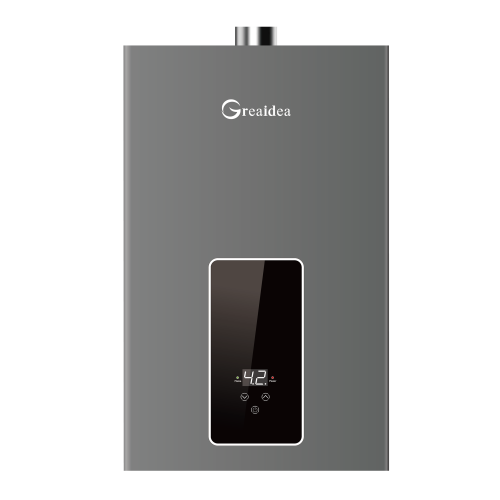

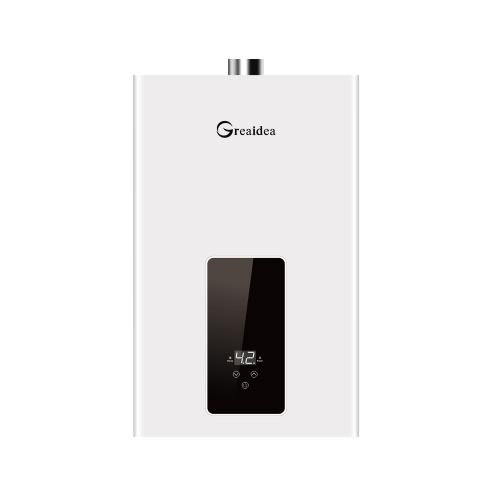

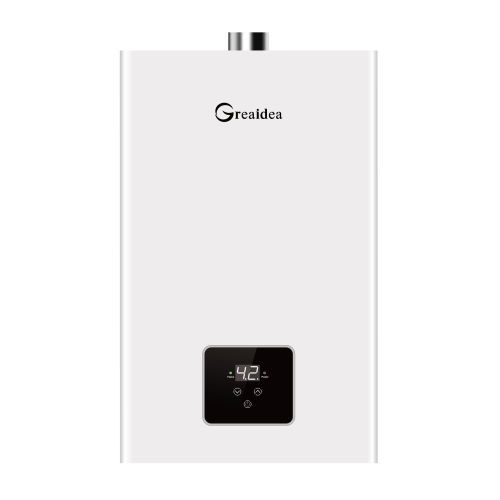

Color options: Elegant white or sleek gray
Display screen: Long rectangular or compact square panel
OEM/ODM supported: Customizable branding, housing, and functional options for partners worldwide
Greaidea's Air-Cooled Constant Temperature Gas Water Heater Precise Temperature Control By Al Algorithm
Precise Temperature Control By Al Algorithm
Achieve precise and consistent hot water with AI algorithm temperature control, a precision water flow sensor, dual-stage burner, double-speed variable-frequency fan, and a precision gas proportional valve—all working together for optimal performance and comfort.
Double Purification for Cleaner, Safer Water
Double purification is achieved through a Water Inlet Filter and Oxygen-Free Copper Pipe, effectively purifying water and inhibiting bacterial growth—providing cleaner, safer water that protects sensitive skin and enhances bathing comfort.
Greaidea's Air-Cooled Constant Temperature Gas Water Heater with Double Purification for Cleaner
Greaidea's Air-Cooled Constant Temperature Gas Water Heater with V-shape burner
Advanced V-Shaped Burner for Efficient and Stable Performance
Equipped with a V-shaped variable frequency segmented burner, this system delivers concentrated flame for enhanced combustion efficiency. Intelligent gear shifting adapts to usage needs, ensuring stable firepower and optimized energy savings—ideal for clients seeking high-performance, customizable gas water heater solutions for competitive markets.

High-Efficiency Gas Water Heater for Competitive OEM Solutions
Delivering over 89% thermal efficiency and up to 80% gas savings, this advanced water heater is engineered for performance-focused brands. With a sleek digital interface and proven fuel economy, it's an ideal choice for clients seeking reliable, energy-efficient models for mass market or premium customization.

Greaidea's Air-Cooled Constant Temperature Gas Water Heater highest saving 80% gas
Exhaust Way:
Forced Exhaust Type
Diameter of Smoke Exhaust:
Ф60MM
Ignition Mode:
Automatic Electrical Pulse Igniton
Gas Type:
LPG/Natural Gas
Rated Voltage:
AC 220V/50HZ &AC 110V/60HZ
Rated Water Pressure:
0.01~0.8MPA
Panel Color:
White / Grey
Connection Pipe Specs:
Water Inlet: G1/2" Pipe; Water Outlet:G1/2" Pipe; Gas Input: G1/2: Pipe
Rated Water Output(△t=25℃)L/Min
12L/min
13L/min
Rated Thermal Load
24KW
26KW
Product Size(MM)
Package Size(MM)
560x350x140
685x405x215
560x350x140
685x405x215
Loading Qty.(PCS)20FT/40FT/40HQ
380/760/900
380/760/900
Capacity
Inlet Water Temperature(℃)
Hot Water Temperature(℃)
Over Temperature Protection(℃)
12~13L
40
>75
>85
