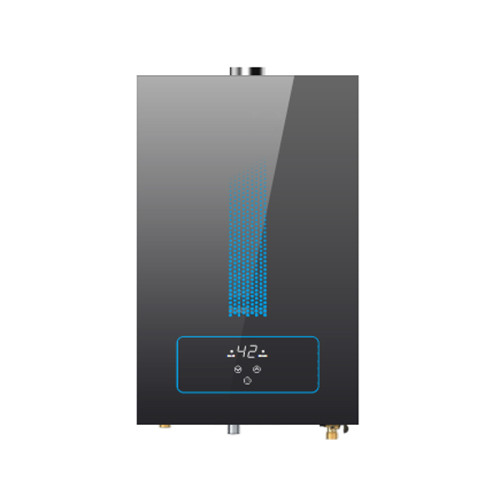

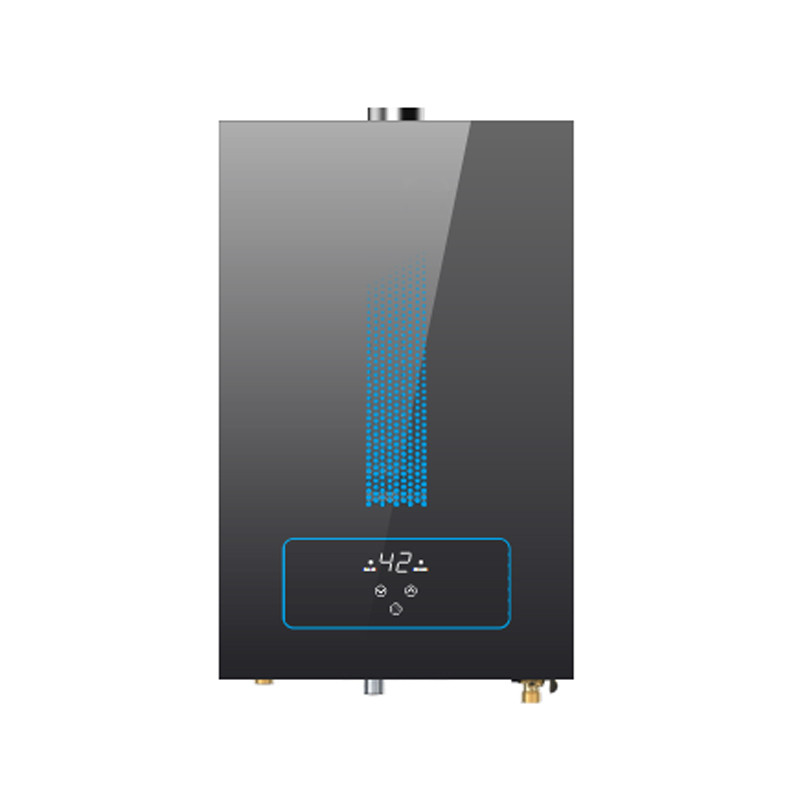

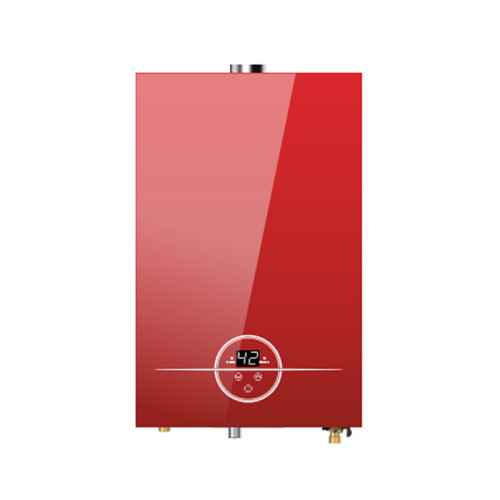

Constant Temperature Gas Water Heater JSQ*-G3456
Constant Temperature Gas Water Heater JSQ*-G3456
Constant Temperature Gas Water Heater JSQ*-G3456
Constant Temperature Gas Water Heater JSQ*-G3456
Constant Temperature Gas Water Heater JSQ*-G3456
Constant Temperature Gas Water Heater JSQ*-G3456
Model
JSQ*-G3456

Item specifics

-Full tempered glass panel
Easy to clean, anti-scratch
-Constant Temp
Comfortable using experience
-Four level burner
Anti-scald in summer
-DC Motor
White Glass panel with white LED

Review

Description

Exhaust Way:
Forced Exhaust Type
Diameter of Smoke Exhaust:
Ф60MM
Ignition Mode:
Automatic Electrical Pulse Igniton
Gas Type:
LPG/Natural Gas
Rated Voltage:
AC 220V/50HZ &AC 110V/60HZ
Rated Water Pressure:
0.01~0.8MPA
Connection Pipe Specs:
Water Inlet: G1/2" Pipe; Water Outlet:G1/2" Pipe; Gas Input: G1/2: Pipe
Exhaust Way:
Forced Exhaust Type
Rated Water Output(△t=25℃):
12~18L/Min
Gas Type:
LPG:2800Pa
NG:2000Pa/1300Pa
Model No.:
Mini 16L
Voltage:
220V/110V
Protective Device:
1. Flame failure safety device
2. Intelligent gas flow control technology
3. Over water pressure protection device
4. Anti dry-burning protection device
5. Anti-frozen device
6. Over heating protection
Constant Temperature Gas Water Heater
Rated Water Output(△t=25℃)L/Min
12L/min
13L/min
16L/min
18L/min
Rated Thermal Load
24KW
26KW
32KW
36KW
Product Size(MM)
Package Size(MM)
560x350x140
685x405x215
560x350x140
685x405x215
560x350x140
685x405x215
560x350x140
685x405x215
Loading Qty.(PCS)20FT/40FT/40HQ
380/760/900
380/760/900
380/760/900
380/760/900
Constant Temperature Gas Water Heater
Constant Temperature Gas Water Heater
Constant Temperature Gas Water Heater
Constant Temperature Gas Water Heater
Capacity
Inlet Water Temperature(℃)
Hot Water Temperature(℃)
Over Temperature Protection(℃)
12~18L
40
>75
>85
