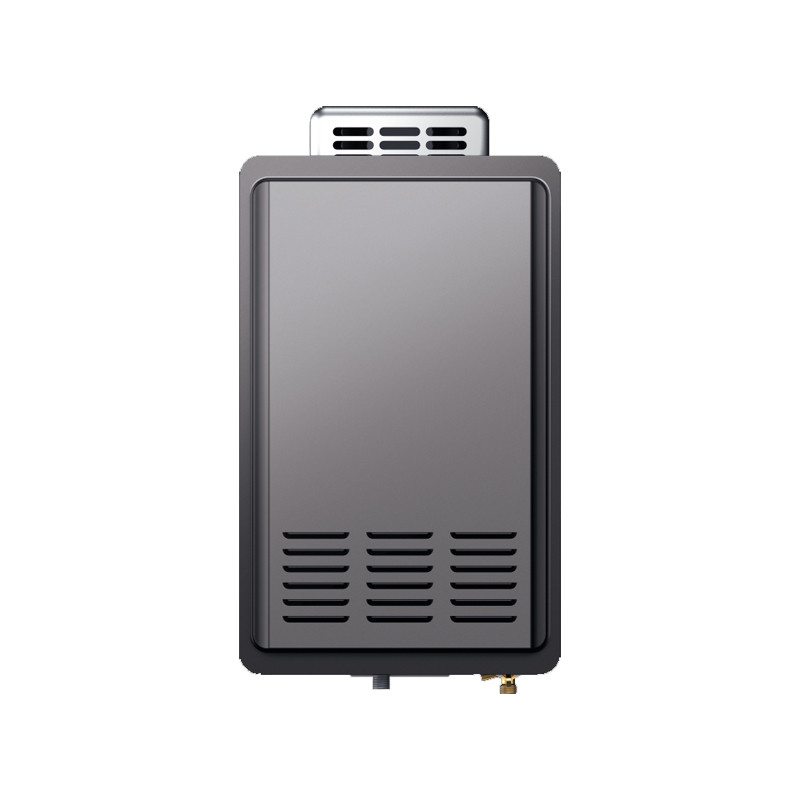

Tankless Water Heater Gas Outdoor Installation JSW32(12L-18L)
Tankless Water Heater Gas Outdoor Installation JSW32(12L-18L)
Tankless Water Heater Gas Outdoor Installation JSW32(12L-18L)
Model
JSW32(12L-18L)

Item specifics

- Big capacity
For 3-5 outlets using in the same time
- Outdoor installation
Make you enjoy quality living environment
- Convenience control
Enough to set up in any area & corner of the home
- Cold protection
Works well even in the cold winter
- Operated by DC fan
Strong wind resistance

Review

Description

Tankless Water Heater Gas Outdoor Installation JSW32(12L-18L)
Exhaust Way:
 Ignition Mode:
Gas Type:
Rated Voltage:
Rated Water Pressure:
Panel Color:
Connection Pipe Specs:
Greaidea's Tankless Water Heater Gas Outdoor Installation
Outdoor Type
Automatic Electrical Pulse Igniton
LPG / Natural Gas
AC 220V/50HZ &AC 110V/60HZ
0.01~0.8MPA
Black / White / Grey
Water Inlet: G1/2" Pipe; Water Outlet:G1/2" Pipe; Gas Input: G1/2: Pipe
Greaidea's Tankless Water Heater Gas Outdoor Installation
Model No.
JSW32
Exhaust Type
Natural
Rated Water Output(△t=25℃):
12~18L/Min
Voltage
110-220V
Gas Type
LPG:2800Pa/2740Pa
NG: 2000Pa/1760Pa/1300Pa
Protective Device
1. Flame failure safety device
2. Intelligent gas flow control technology
3. Over water pressure protection device
4. Anti dry-burning protection device
5. Anti-frozen device
6. Over heating protection
Greaidea's Tankless Water Heater Gas Outdoor Installation
Rated Water Output(△t=25℃)L/Min
12L/min
13L/min
16L/min
18L/min
Rated Thermal Load
26KW
32KW
36KW
40KW
Product Size(MM)
Package Size(MM)
575x380x173
810x440x255
575x380x173
810x440x255
575x380x173
810x440x255
575x380x173
810x440x255
Loading Qty.(PCS)20FT/40FT/40HQ
410/630/740
410/630/740
410/630/740
410/630/740
