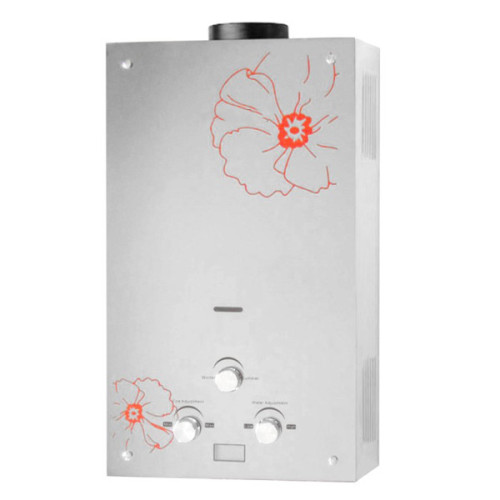

Flue Duct Gas Water Heater JSD-G8
Item specifics
- -Full tempered glass panel
- Easy to clean, anti-scratch
- -Summer-Winter switch
- Save gas in summer
- -On demand hot water
- Endless hot water supply
- -Saving energy & money
- Ignition failure protection
- -Multiple protection
- Ensure your family safety
- -Easy to install & use
- Simple and convenient to operate
Description
Model No.: | JSD-G8 |
Exhaust Way: | Flue Type |
Rated Water Output(△T=25℃) L/Min
| 6~12L/Min
|
Gas Type: | LPG:2800Pa/2740Pa NG:2000Pa/1760Pa/1300Pa |
|
Power Output:
|
12~24KW
|
Protective Device: | 1. Over heating protetion 2. Anti-frozen device 3. Flame failure safety device 4. Over water pressure protection device |
Capacity |
6L
|
7L
|
8L
|
Product Size(MM) |
440X300X120
|
490X310X140
|
520X320X140
|
Package Size(MM) |
540X350X170
|
600X360X190
|
640X370X200
|
Loading Qty.(PCS)20FT/40FT/40HQ |
880/1780/2050
|
685/1390/1620
|
600/1220/1420
|
Capacity
|
10L
|
12L
|
ProducT Size(MM) |
550X340X140
|
590X340X140
|
Package Size(MM) |
685X340X215
|
705X390X200
|
Loading Qty.(PCS)20FT/40FT/40HQ |
500/1040/1220
|
480/990/1160
|
|
Capacity
|
Inlet Water Temperature(℃）
|
Hot Water Temperature(℃）
|
Over Temperature Protection(℃）
|
|
6L~12L
|
40
|
＞75
|
＞85
|
