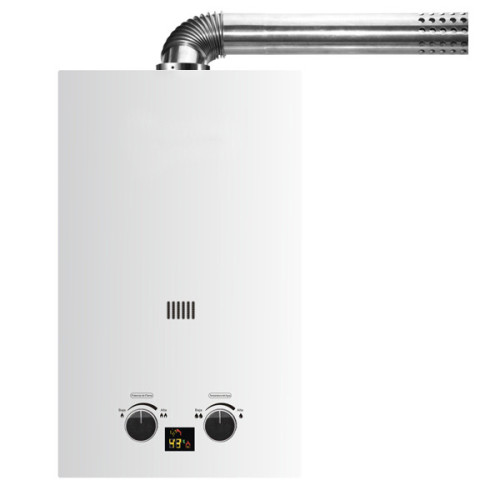

Mechanical Forced Type Gas Water Heater JSQ-D11D
Item specifics
- -Electric fan
- Forced CO outside the heater
- -Fashion design
- Shining LED display
- -High efficiency
- Oxygen free copper heater exchangerer
- -Multiple protection
- Ensure your family safety
Description
Model No.: | JSQ-D11D |
Exhaust Way: | Forced Exhaust Type |
Rated Water Output(△T=25℃) L/Min | 6~20L/Min |
Gas Type: | LPG:2800Pa/2740Pa NG:2000Pa/1760Pa/1300Pa |
|
Power Output:
|
12KW-40KW |
Protective Device: | 1. Over heating protection 2. Anti-frozen device 3. Flame failure safety device 4. Over water pressure protection device |
| |
Capacity |
6L
|
7L
|
8L
|
10L
|
Product Size(MM) |
440X300X120
|
490X310X140
|
520X320X140
|
550X330X180
|
Package Size(MM) |
540X350X170
|
600X360X190
|
640X370X200
|
670X380X235
|
Loading Qty.(PCS)20FT/40FT/40HQ |
880/1780/2050
|
680/1390/1620
|
600/1220/1420
|
450/950/1120
|
Capacity
|
12L
|
16L
|
18L
|
20L
|
ProducT Size(MM) |
610X340X180
|
650X420X185
|
680X380X180
|
730X430X180
|
Package Size(MM) |
705X390X235
|
750X470X235
|
830X430X250
|
880X470X250
|
Loading Qty.(PCS)20FT/40FT/40HQ |
420/880/1040
|
340/700/810
|
315/645/750
|
270/550/640
|
|
Capacity
|
Inlet Water Temperature(℃）
|
Hot Water Temperature(℃）
|
Over Temperature Protection(℃）
|
|
6L~20L
|
40
|
＞75
|
＞85
|
